ELISA TESTING SYSTEMS
OPEN PLATFORM. SCALABLE AUTOMATION.
As laboratory automation has evolved from a luxury to a necessity, DYNEX has remained committed to preserving the scalability and versatility that enables labs to optimize their own workflows, rather than adapt to the limitations of a closed system. Whether you need to accommodate diverse sample types, test for various disease states, or process commercial kits and lab-developed tests on the same platform, DYNEX can propel your lab forward.
QUICKLINKS:
OPEN SYSTEMS FOR MAXIMUM PRODUCTIVITY
Explore our family of automated ELISA instruments, built to support thousands of assays and your unique workows.
Systems comparison brochure| DS2® ELITE | DSX® | AGILITY® | |
| Dimensions (W x D x H) | 21” x 27.5” x 26.25” | 39” x 31” x 32.25” | 47” x 30.25” x 47” |
| Footprint | 3.9 sq ft | 10.5 sq ft | 12.5 sq ft |
| Bench Weight | 120 lbs | 270 lbs (max) | 560 lbs (max) |
| Noise Output | <78 dB | <70 dB | <70 dB |
| DS2® ELITE | DSX® | AGILITY® | |
| Number of Plates | 2 | 4 | 12 |
| Assays per Plate | Up to 12 | Up to 12 | Up to 4 |
| Sample Capacity | 100* | 98* | 200* |
| Continuous Sample Loading | |||
| Number of Reagents | Up to 8 (25 mL tubes) Up to 10 (15 mL tubes) |
Up to 24 (25 mL tubes) | Up to 12 SmartKit® reagent packs simultaneously |
| Number of Standard/Control Bottles | 24 (2 mL vials) | 33 (1.5 mL vials) | Included in each SmartKit® reagent pack |
| Number of Pipettes | 1 | 1 | 1 |
| Pipette Tip Type | Disposable | Disposable | Disposable |
| DS2® ELITE | DSX® | AGILITY® | |
| Liquid Level Sensing (reagents, controls, and samples) | |||
| Clot Detection | |||
| Dispense Anomaly Detection | |||
| Tip Detection | |||
| Electronic Signature Pipetting | |||
| Alarms | |||
| Barcode Reader | |||
| Multi-Shot Dispense for Sample Replicates | |||
| Wash Plate Adjustments |
* Additional samples can be added with continuous loading when sample racks are available
DS2® ELITE
SMALL FOOTPRINT. BIG UPGRADE.
Powered by innovative technology, our newly updated DS2® system combines proven ELISA automation with dynamic software, processing, and reporting enhancements to help your lab achieve ecient workows and deliver reliable results.
DSX®
AUTOMATED WORKFLOWS. INCREASED FLEXIBILITY.
With our open platform, fully automated DSX® system, you can process multiple assays simultaneously and handle samples with the speed and accuracy your lab requires. Advanced automation features provide extraordinary flexibility at every workflow stage.
AGILITY®
FASTER PROCESSING. LESS DOWNTIME.
Our Agility® system is designed to meet high-volume testing demand. With continuous sample loading, the elimination of most manual liquid transfers, and reduced hands-on time by up to 60%, your lab can rely on this trusted workhorse.

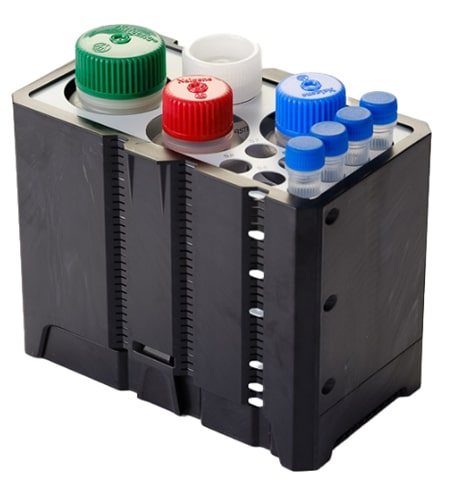

DYNEX SMARTKIT® FOR THE AGILITY SYSTEM
Minimize your liquid transfers and increase your cost savings with a DYNEX SmartKit. Each custom kit has packaging that makes loading simple and reduces hands-on time – all while providing better quality control.

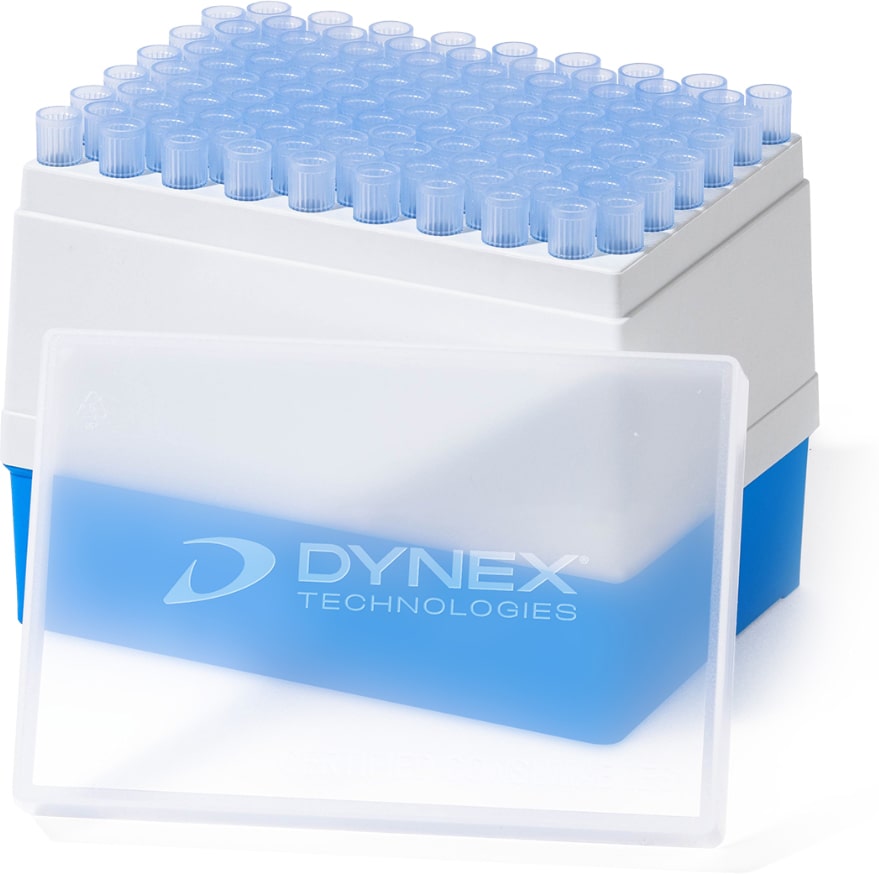

CONSUMABLES
ENHANCE YOUR PERFORMANCE.
SAFEGUARD YOUR INVESTMENT
Achieve peak performance on your DYNEX automated ELISA system with accessories and consumables designed specifically to ensure precise and accurate outcomes, every time.
Our consumables are designed, tested, and verified with our instruments to provide the most accurate results and meet the highest quality standards, ensuring your laboratory reaches maximum productivity without compromise.
Tech Specs| CAPACITIES | DS2® ELITE | DSX® | AGILITY® |
| Sample Tip Capacity | 216 tips (2 x 108) | 432 tips (4 x 108) | Up to 2,240 tips (20 x 112 with additional continuous load capability) |
| Reagent Tip Capacity | 20 tips | 41 tips | Up to 98 tips (additional continuous load capability) |
| Dilution Wells Capacity | Up to 96 deep-well strips (12 x 8) |
Up to 192 deep-well strips (24 x 8) |
Up to 384 deep-well strips (48 x 8) |
